The Executive "Solution"

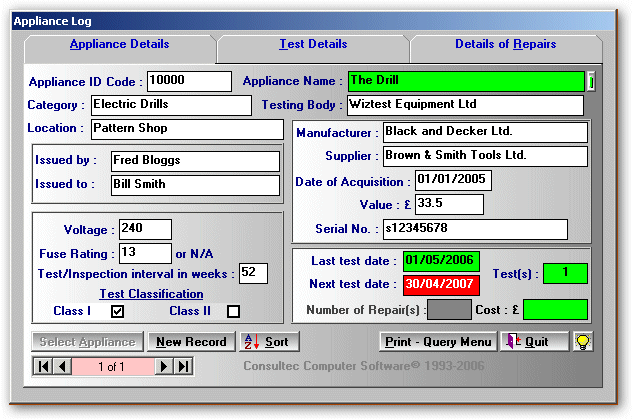

Appliance Log

The Appliance Log Module enables you to store the relevant data of your electrical equipment, regarding test, inspection and repairs.

Record and Print numerous user defined Reports of the Following:

Appliance Details

Test Results

Repair Cost

The advanced search query feature allows you to interrogate the database and view and print the results.

The diary feature will notify you of a any re-test between user defined dates in a Full or Summary format.

Splash Screen

Screen Splash


The Classifications as follows:- Class I and Class II

Class I:

Is the most common type; its safety is dependent on the integrity of its one layer of insulation and the earth bonding of its metalwork.

If there is an insulation fault, the metalwork is entirely dependent on the integrity of the earth bonding if it is not to attain a hazardous voltage.

Inspection of the earthing conductors and connections are very important where this type of equipment is used.

Class II:

There is no earth connection on this equipment and the operator’s safety is dependent on the integrity of two layers of insulation.

The first layer is basic or functional insulation and the second layer is supplementary or protective insulation.

In some cases a single insulation layer is allowed if it is mechanically and electrically equivalent to double insulation.

Class II equipment is marked with the symbol of a square within a square.

For further information send for:- The Safe use of Portable Electrical Apparatus (electrical safety).

From the Health and Safety Executive.
